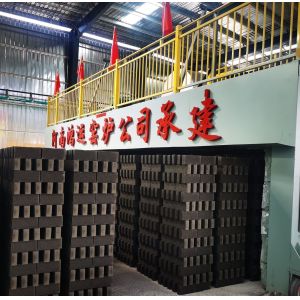

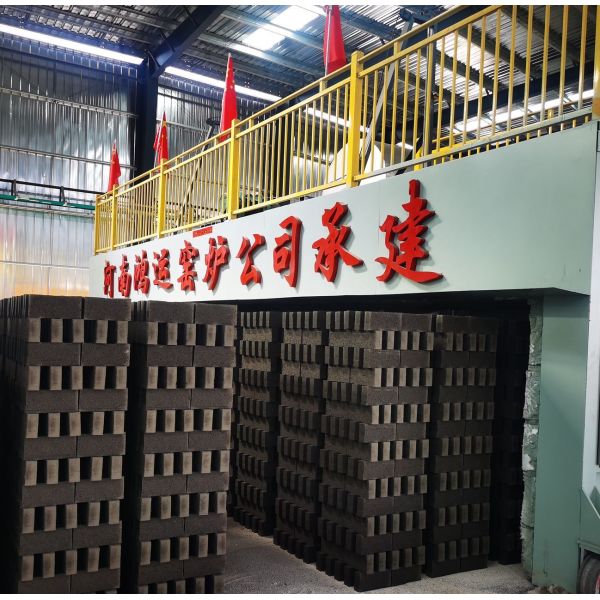

Mobile Circular Rotary Clay Brick Tunnel Kiln
The Mobile Rotary Tunnel Kiln represents a significant advancement over traditional tunnel kilns. Its defining feature is that the bricks remain stationary while the kiln body rotates. This innovative design enhances efficiency and control throughout the brick-making process.
The kiln body boasts a robust steel structure with a circular orbit, sequentially divided into distinct zones: drying, preheating, roasting, cooling, and heat preservation. The integrated machine and kiln body operation is a key characteristic, streamlining the entire process.
The kiln body's intermittent rotational movement facilitates a continuous cycle of brick production. It efficiently manages the intake of raw bricks and the output of finished products, ensuring a seamless transition through drying, preheating, roasting, and cooling stages.
Key Benefits
- Enhanced Efficiency: Optimized for continuous brick production
- Improved Control: Precise temperature and environment management in each zone
- Robust Design: Durable steel structure ensures long-term reliability
- Streamlined Operation: Integrated machine and kiln body for seamless workflow
- Continuous Production: Rotating kiln body enables uninterrupted brick manufacturing
Target Industries & Applications
Suitable for brick manufacturers seeking efficient, high-volume production solutions. Ideal for producing different sizes of solid and hollow bricks.
Technology Advantages
Automatic Humidity Monitoring System
Our advanced system enables real-time collection of kiln moisture data, providing comprehensive monitoring of the brick blank drying process.
- Humidity data links to servo air distribution system for dynamic air supply adjustment
- Stabilizes drying environment for consistent green body quality
- Automatic early warning system predicts quality risks from humidity fluctuations
- Proactive intervention reduces losses from dampness-related issues
Advanced Dehumidification Technology
Negative pressure dispersion dehumidification allows for more precise temperature and humidity control throughout the kiln.
Optimized Air Circulation
Small top-mounted fans ensure hot air efficiently reaches the kiln bottom, improving brick drying and increasing overall kiln production capacity.
Technical Specifications
| Section Width |
Capacity (pcs/day)
Brick size: 240*115*53 mm |
| 5.2 m |
100,000–150,000 (Standard brick) |
| 6.8 m |
150,000–200,000 (Standard brick) |
| 8.8 m |
200,000–250,000 (Standard brick) |
| 10.8 m |
250,000–300,000 (Standard brick) |
| 12.8 m |
300,000–500,000 (Standard brick) |
| 16.8 m |
500,000–700,000 (Standard brick) |
